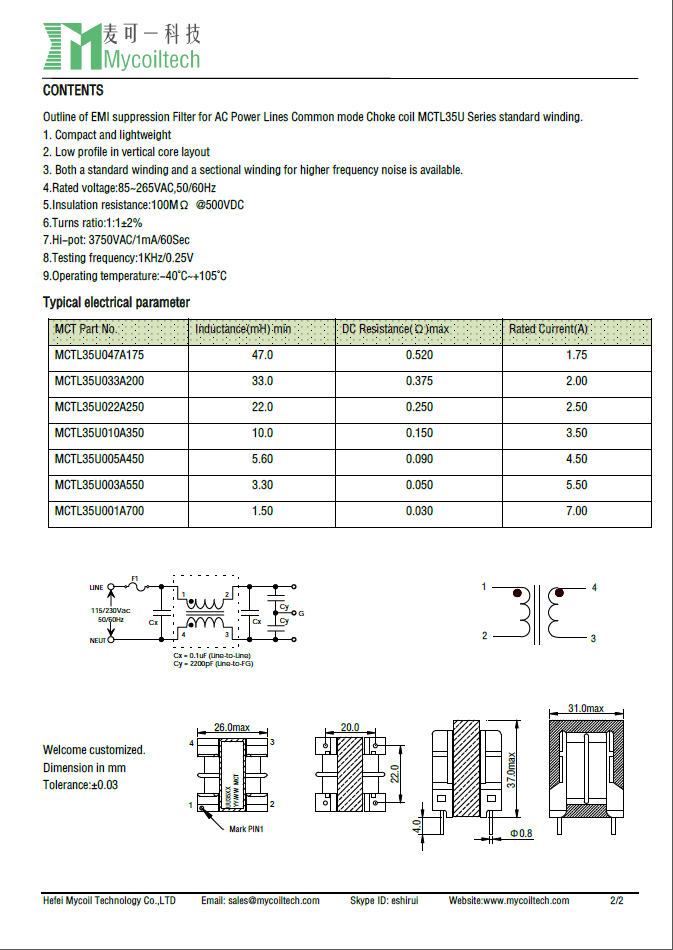

Outline of EMI suppression Filter for AC Power Lines Common mode Choke coil MCTL35U Series standard winding.

UU35 type

1. Compact and lightweight

2. Low profile in vertical core layout

3. Both a standard winding and a sectional winding for higher frequency noise is available.

4.Rated voltage:85~265VAC,50/60Hz

5.Insulation resistance:100MΩ @500VDC

6.Turns ratio:1:1±2%

7.Hi-pot: 3750VAC/1mA/60Sec

8.Testing frequency:1KHz/0.25V

9.Operating temperature:-40°C~+105°C
